Dasa Holidays AWS Cloud Infrastructure

Building a Scalable, Secure Cloud Foundation for a Growing Travel Business



Client Overview



Dasa Holidays is a rapidly growing travel and hospitality company based in India, operating a hotel booking platform powered by QloApps along with a customer relationship management system built on SuiteCRM. As the organization expanded and experienced increasing demand, it required a production-ready AWS infrastructure capable of delivering high reliability, seamless scalability during peak booking seasons, and strong security to protect customer data and business operations.



The Challenge



Dasa Holidays needed a robust cloud infrastructure to support their digital transformation. Key requirements included:

• High Availability – Zero downtime for booking platform
• Security – Protection against web attacks and data breaches
• Scalability – Ability to handle peak booking seasons
• Cost Efficiency – Optimized infrastructure within budget
• Compliance – Audit logging and security best practices

Key Requirements

• Support for QloApps (hotel booking platform)
• Support for SuiteCRM (customer relationship management)
• Multi-tier architecture with proper network isolation
• Database with automatic failover capability
• Web application firewall for security
• Comprehensive logging and monitoring

Our Solution



Calyza Tech LLP designed and deployed a comprehensive AWS infrastructure following AWS Well-Architected Framework principles.



Architecture Highlights



Multi-Tier Architecture

• Public tier for Application Load Balancer
• Private tier for application servers (isolated from internet)
• Private tier for database (maximum security)

High Availability

• Resources distributed across 2 Availability Zones (ap-south-1a and ap-south-1b)
• RDS MySQL with Multi-AZ deployment for automatic failover
• Application Load Balancer distributing traffic across multiple servers

Security-First Approach

• All EC2 instances deployed in private subnets (no direct internet access)
• AWS WAF protecting against OWASP Top 10 vulnerabilities
• CloudTrail audit logging enabled
• VPC Flow Logs for network monitoring
• Encrypted storage (EBS, RDS, S3)

Infrastructure Components



Network Layer

• VPC (10.0.0.0/16)
• 6 Subnets (2 public, 2 private app, 2 private database)
• 1 NAT Gateway
• Application Load Balancer

Compute Layer

• 2 Backend Servers – r6i.2xlarge (8 vCPU, 64 GB RAM)
• 4 Frontend Servers – m6i.xlarge (4 vCPU, 16 GB RAM)
• Ubuntu 24 LTS
• Nginx, PHP 8.1, Composer
• Encrypted EBS storage

Database Layer

• RDS MySQL 8.0 (db.m5.4xlarge)
• Multi-AZ Deployment
• Automated daily backups (7-day retention)
• Performance Insights enabled
• Enhanced Monitoring

Storage Layer

4 S3 Buckets:

• QloApps Media Assets
• CRM Attachments
• Backups
• Centralized Logs

Technical Highlights



Zero-Trust Network Architecture

All application servers are deployed in private subnets with no direct internet access. The Application Load Balancer acts as the single secure entry point.



Defense-in-Depth Security

• Network isolation (VPC, Subnets, Security Groups)
• AWS WAF protection
• Data encryption at rest and in transit
• Complete audit logging (CloudTrail, VPC Flow Logs)
• Secure access via IAM roles and Systems Manager

High Availability Design

• Multi-AZ architecture
• RDS automatic failover
• Load balancer health checks
• Redundant application servers

Cost Optimization

• Right-sized instances
• Single NAT Gateway
• S3 lifecycle policies
• Reserved Instance recommendations provided

Technologies Used



AWS Services

• EC2
• Application Load Balancer
• RDS MySQL (Multi-AZ)
• S3
• VPC
• NAT Gateway
• AWS WAF
• IAM
• CloudWatch
• CloudTrail
• Systems Manager

Software Stack

• Ubuntu 24 LTS
• Nginx
• PHP 8.1
• MySQL 8.0

Why This Solution Works



1. Aligned with AWS Best Practices

• Well-Architected Framework principles
• Security by design
• High availability architecture
• Cost optimization strategy

2. Future-Ready Design

• Horizontal scalability (add servers)
• Vertical scalability (upgrade instance types)
• Ready for auto-scaling
• CDN (CloudFront) ready

3. Operational Simplicity

• Easy to manage
• Standard AWS services
• No vendor lock-in

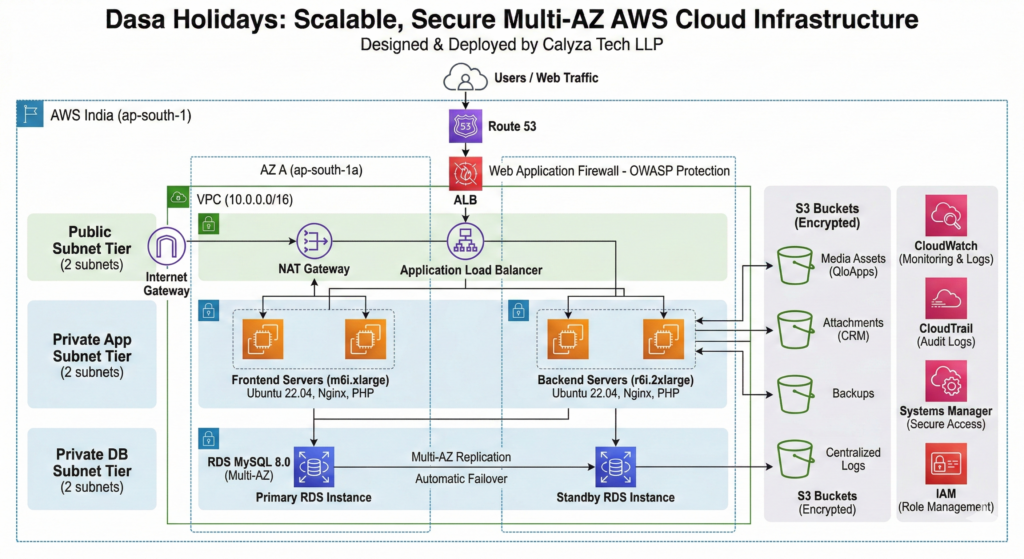

Architecture Diagram
